TrolMaster NFS-3 Aqua-X Plus Irrigation Control System

TrolMaster (NFS-3) Aqua-X Plus Controller – Professional Multi-Zone Irrigation & Crop Steering System

Designed for professional growers and high-performance cultivation environments, the TrolMaster NFS-3 Aqua-X Plus Controller is an advanced, multi-zone irrigation control system that offers unmatched precision, flexibility, and scalability. An upgrade from the original Aqua-X, the NFS-3 is packed with expanded features, including crop steering automation, smart scheduling, and real-time sensor integration, all viewable through a vibrant 7" LCD touchscreen or remotely via the TrolMaster app.

The NFS-3 allows for direct internet connectivity via CAT5 network cable and provides full control over up to 240 devices and 25 individual sensors, including water content, pH, EC, and temperature monitoring. Historical data, alerts, and performance logs can be accessed directly on the device or through the TM+ app, offering a complete picture of your grow environment from anywhere.

With support for automated crop steering, growers can utilize optional WCS-1 or WCS-2 Water Content Sensors to adjust irrigation based on real-time moisture and EC levels—making it easier than ever to manage dry-down, optimize nutrient delivery, and maximize plant performance.

The NFS-3 also supports Multiple Pump Link functions, allowing users to assign different pumps and valves to specific irrigation tasks. Whether you’re managing a large commercial operation or multiple grow zones, the Aqua-X Plus delivers the control and automation needed for success.

Key Features:

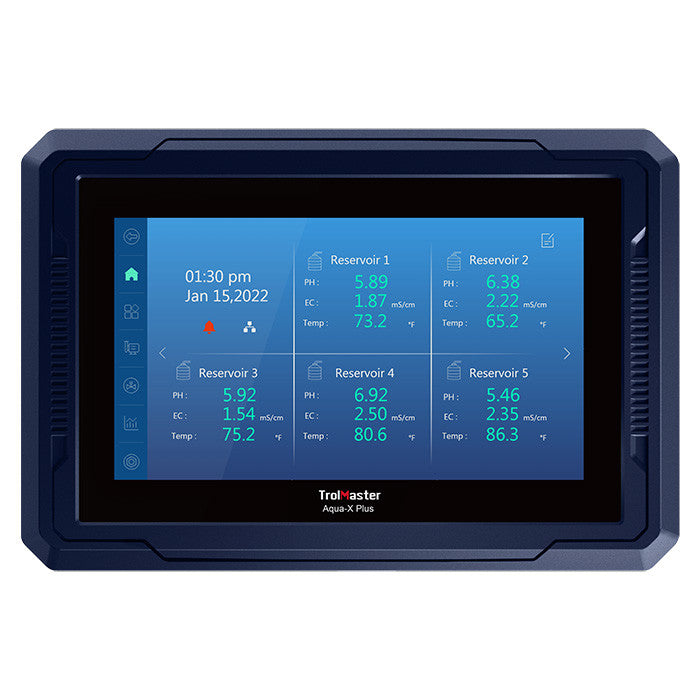

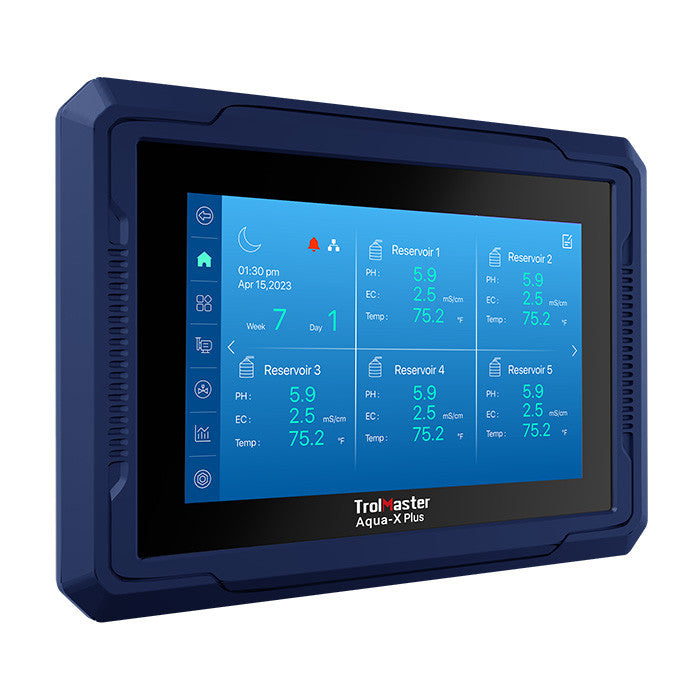

• 7” Touchscreen Interface: Easy navigation and full system visibility
• Crop Steering Functionality: Automate irrigation based on real-time water content data
• Sensor Integration: Supports 25 sensors including pH, EC, Temp, and Water Content
• Device Control: Manage up to 240 solenoids, pumps, and modules
• Remote Access: Monitor and control via TrolMaster TM+ smartphone app
• Historical Data Logging: View detailed grow data on-screen or via mobile
• Multiple Pump Linking: Assign pumps/valves to various irrigation strategies
• Modular & Scalable: Ideal for large or expanding grow operations

Package Includes:

• 1 x Aqua-X Plus Controller (NFS-3)
• 1 x AMP-3 Sensor Board
• 1 x 12V Power Adapter
• 1 x RJ12 Cable Set
• 1 x Mounting Plate

Technical Specifications:

• Input Voltage: 100–240V
• Working Temperature: 31–104°F
• Humidity Tolerance: ≤ 90%
• Ingress Protection Rating: IP20
• Max Distance to Devices: 1000 ft
• Sensor Capacity:
  • Sensor Boards (AMP-3): Up to 5
  • Water pH Sensors: Up to 5
  • EC & Temp Sensors: Up to 5
  • Water Content Sensors (WCS-1 and WCS-2): Up to 20
  • Water Detectors: Up to 20
• Control Modules Supported: Up to 20
• Certifications: CE, ETL, FCC
• Voltage: 120V

The TrolMaster NFS-3 Aqua-X Plus delivers advanced, integrated irrigation control for serious growers. From crop steering and nutrient dosing to multi-zone automation, this system is built to meet the demands of modern horticulture.

Precision growing starts here—optimize every drop with the Aqua-X Plus.
