TrolMaster (AS-1) CO2 Alarm Station – Audio/Visual CO2 Safety Alert System with Cable Set

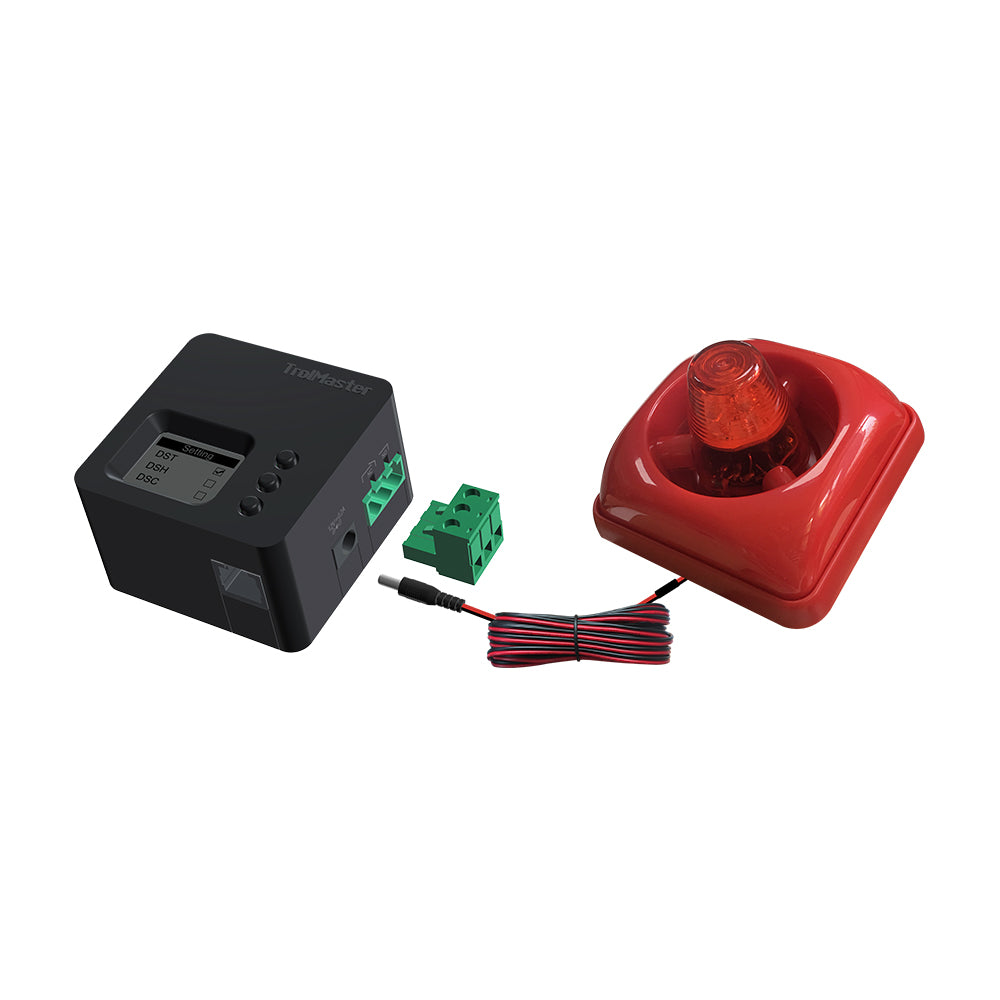

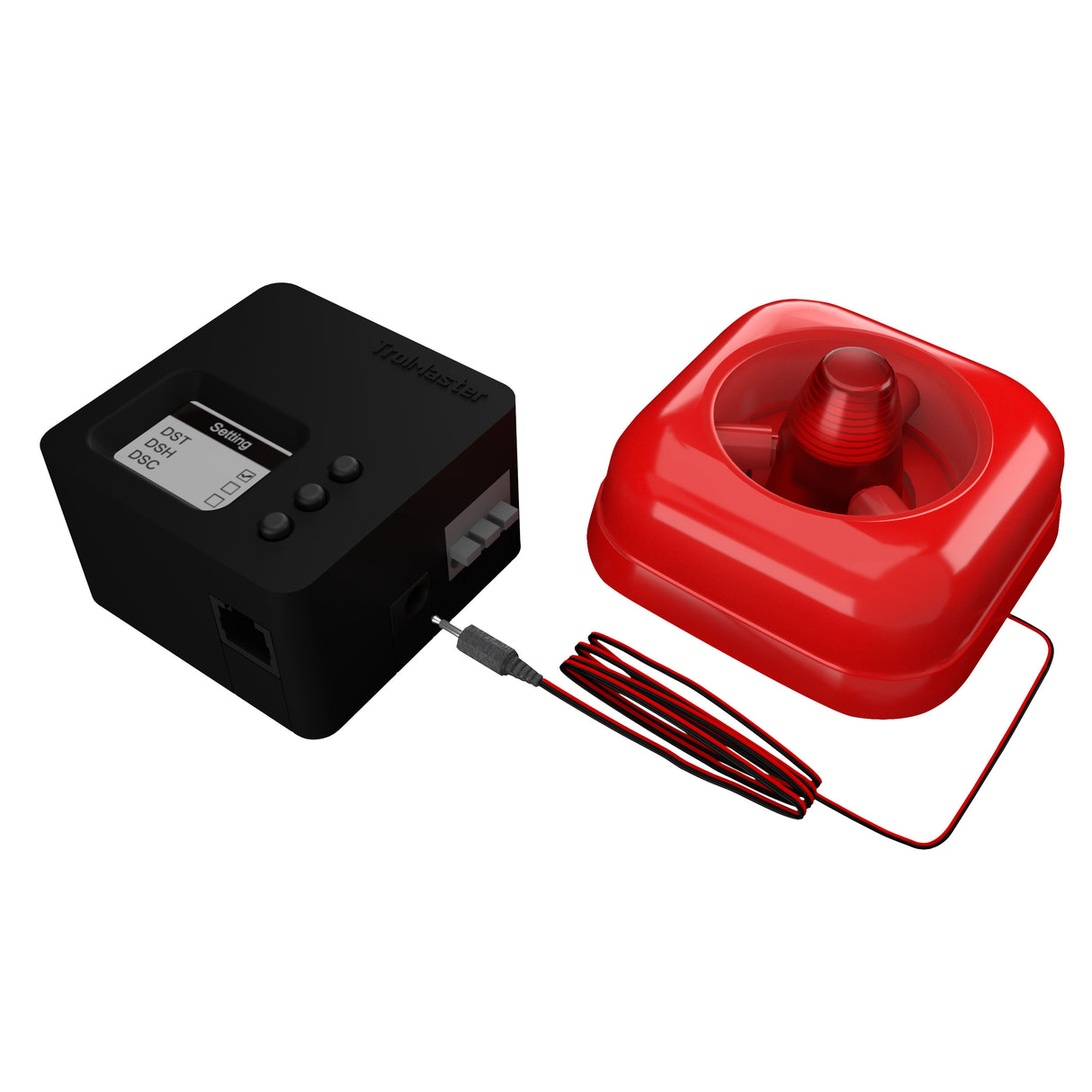

Ensure a safer growing environment with the TrolMaster AS-1 CO2 Alarm Station, a reliable safety system that alerts growers to elevated CO2 levels using both audible and visual alarms. This complete set includes the DSD-1 dry contact station and the AS-5 alarm module, which can be mounted inside or outside of your grow room or facility for maximum visibility and safety compliance.
Designed for integration with the TrolMaster Carbon-X CO2 Safety System, the AS-1 connects easily via RJ12 to the CDA-1 and can be assigned to either the AL-1 or AL-2 CO2 sensor channels—or both—for full redundancy. In the event CO2 levels rise above safe thresholds, the system will trigger a loud 85dB siren and a bright red strobe light (120 FPM) to immediately alert staff or personnel.
Ideal for commercial cannabis facilities and any CO2-enriched growing environment, the AS-1 enhances workplace safety and ensures compliance with building and safety codes.
Key Features:
- Audio/Visual Alert System: Emits 85dB alarm and red strobe when CO2 exceeds safe levels
- Compatible with TrolMaster Carbon-X: Links to CDA-1 and AL-1/AL-2 CO2 sensor channels
- Plug and Play Setup: Easy installation with included cables and splitter
- Flexible Mounting Options: Install inside or outside of grow areas
- Extra Dry Contact Output: Allows for integration with additional safety or control systems

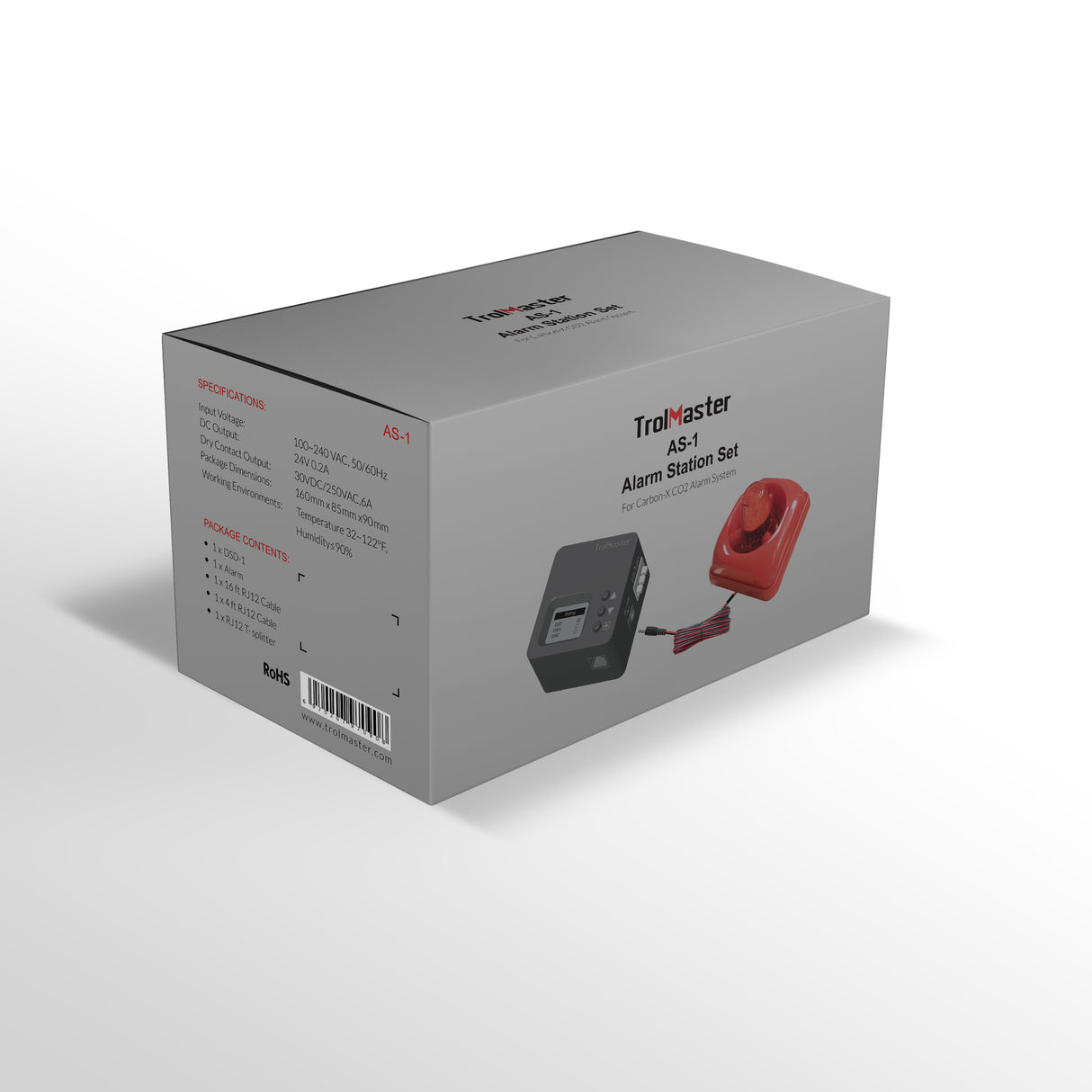

Package Includes:
- 1 x DSD-1 Dry Contact Station
- 1 x AS-5 Alarm (Audio/Visual)
- 1 x 16 ft RJ12 Cable
- 1 x 4 ft RJ12 Cable
- 1 x RJ12 T-Splitter
Technical Specifications:
- Input Voltage: 100–240 VAC, 50/60Hz
- Output Current: 24V 0.2A
- Siren Volume: 85 dB
- Strobe Light: Red, 120 flashes per minute
- Dry Contact Output: 30VDC / 250VAC, 6A
- Operating Temperature: 32–122°F
- Humidity Tolerance: ≤ 90%
- Package Dimensions: 160mm (L) x 80mm (W) x 90mm (H)
- Voltage: 120V
The TrolMaster AS-1 CO2 Alarm Station is an essential safety upgrade for any grower using CO2 enrichment. With its powerful audio-visual alerts and seamless system integration, it helps protect both plants and people in high-performance cultivation environments.
Stay safe. Stay compliant. Stay in control with TrolMaster.
