TrolMaster DSP-2 240V Program Device Station for Hydro-X and Aqua-X

TrolMaster  |  SKU: ec_tm_067

$87.78

Shipping & Delivery

Shipping Lead Time: 3 - 6 Days

Learn more about our shipping and return policies.

Scheduled Equipment Control for Hydro-X and Aqua-X

The TrolMaster DSP-2 is a plug-in timer module that switches compatible equipment on and off through your Hydro-X or Aqua-X controller. The station supports loads up to 10 A and connects to the controller using an RJ12 cable.

With Hydro-X, you can set specific start times or run repeating on/off cycles. With Aqua-X and an OA6-24 control module, you can use Master Pump Link to start a central irrigation pump automatically when a linked 24 VAC zone opens.

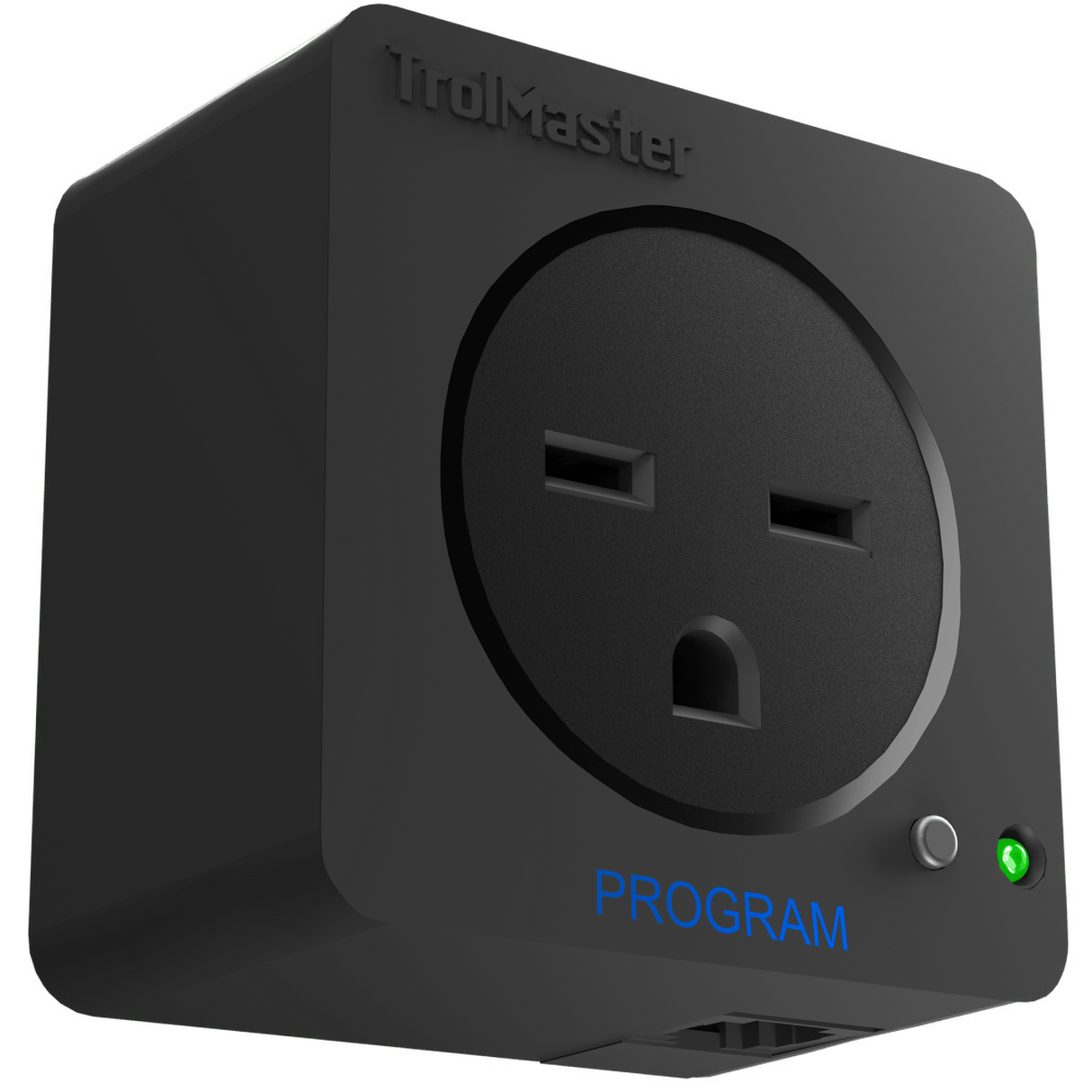

The status LED shows whether the outlet is on or off and signals an overload. A button on the module lets you manually switch the outlet on or off.

Electrical Specifications

  • Input and output voltage range of 100–240 VAC at 50/60 Hz
  • Maximum output current of 10 A
  • Operating temperature range of 32°F to 122°F

What’s Included

  • 1 DSP-2 Program Device Station
  • 1 RJ12 cable, 16 ft
  • 1 RJ12 cable, 4 ft
  • 1 RJ12 T-splitter
