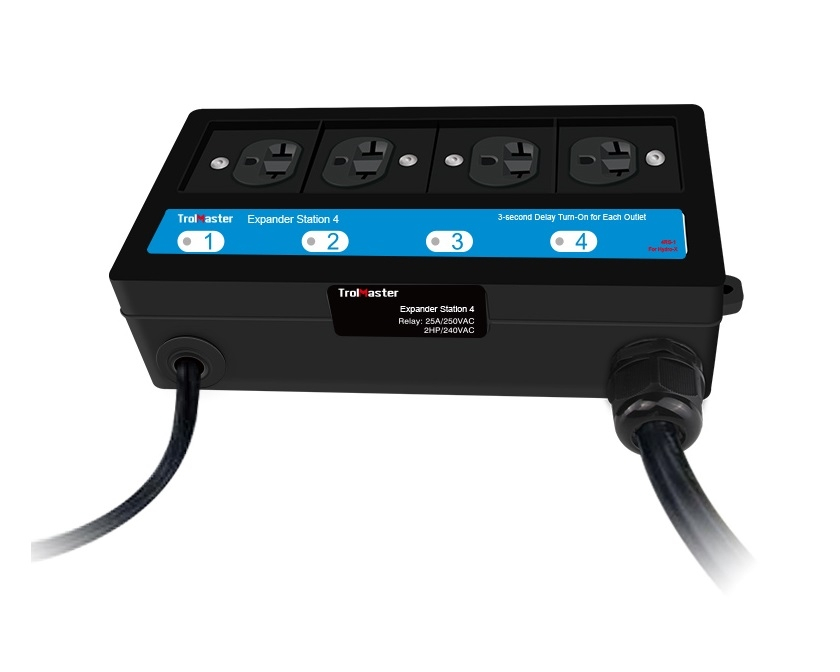

TrolMaster Expander Station 4 (4RS-1) - Expand Your Hydro-X Control
The TrolMaster 4RS-1 Expander Station 4 is a universal 4-outlet power expansion module designed to seamlessly integrate with your TrolMaster Hydro-X environmental control system. This module allows you to expand the number of devices you can control, providing safe and reliable power distribution.
How it Works:
The 4RS-1 connects to your Hydro-X control module via a single 120-240 volt "trigger" cable. When the control module activates, the 4RS-1 sequentially powers each of its four outlets with a 3-second delay between each. This staggered activation minimizes high start-up (inrush) current, preventing overloads and ensuring safe operation of up to four devices.
Key Features:
- 4 Outlets: Expands your Hydro-X system's control capacity to four additional devices.
- Individual Power Relays (25A per outlet): Provides robust and reliable power switching for each outlet.
- 3-Second Intervals (Time Delay): Reduces start-up surges and protects your equipment.
- 120-240 Volt Compatibility: Works with both 120V and 240V power circuits.
- High Capacity (Up to 50 Amps @ 240VAC): Handles demanding electrical loads.
- Easy Wiring: Three-wire terminals accept up to #6 AWG wire for easy connection to your power source.
Specifications:
- Main Power Voltage: 240VAC
- A6-24 Voltage: 24V
- Receptacle Quantity: 4
- Max Relay Amperage: 25A (per outlet)
- Operating Temperature: 41-140°F (5-60°C)
- Operating Humidity: 0-99% Noncondensing
Benefits:
- Safe and reliable control of multiple devices.
- Protection against inrush current and electrical overloads.
- Easy expansion of your Hydro-X system.
- Simplified wiring and installation.
- Wide operating temperature and humidity range.
Ideal for:
- Expanding Hydro-X systems to control more lights, pumps, fans, and other devices.
- Applications requiring sequenced power activation to minimize electrical stress.
