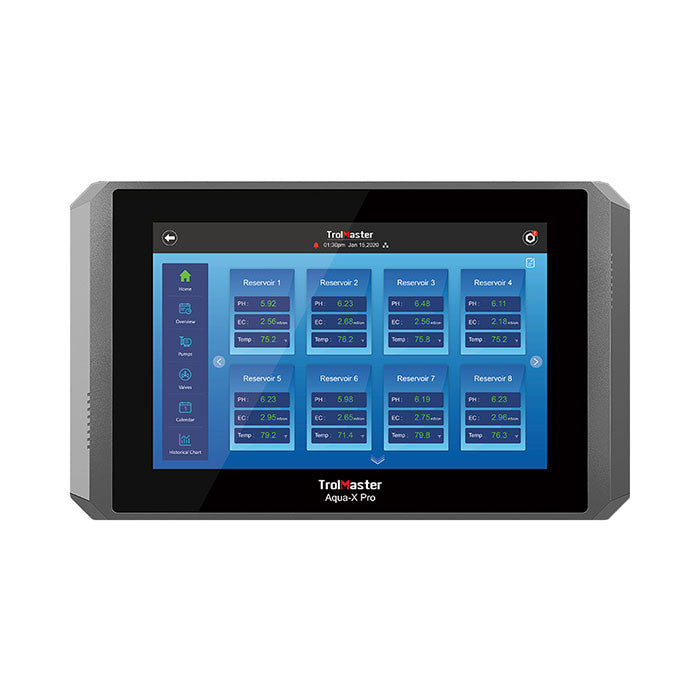

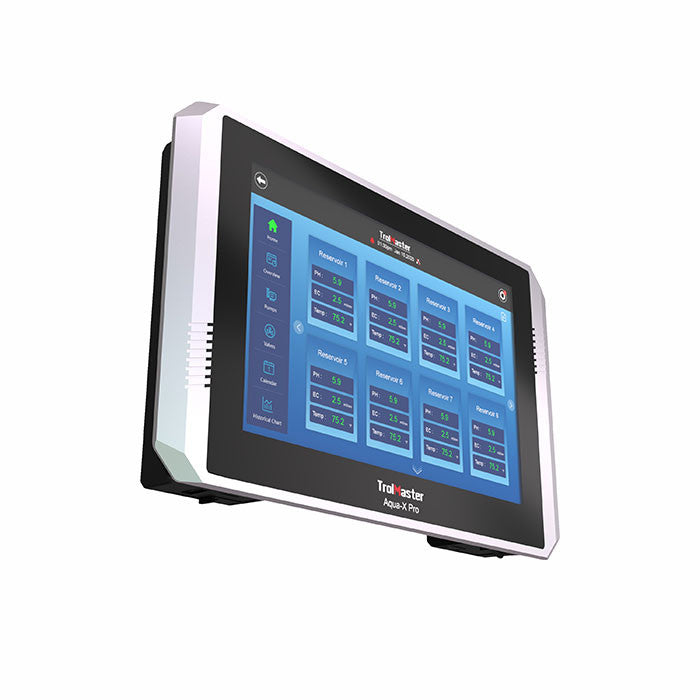

TrolMaster NFS-2 Aqua-X Pro Irrigation Control System

TrolMaster (NFS-2) Aqua-X Pro Controller – Advanced Irrigation Control for Professional Growers

Take complete control of your irrigation system with the TrolMaster NFS-2 Aqua-X Pro Controller, the most advanced and customizable solution for managing watering, feeding, and environmental monitoring in commercial growing environments. Designed for large-scale and precision cultivation, the NFS-2 delivers unmatched flexibility, allowing growers to connect and control up to 300 pumps and 300 solenoids, while monitoring dozens of sensor inputs—all from a single, intuitive platform.

At the core of the NFS-2 is a 10” touchscreen display for streamlined setup and management. You can also control and monitor your irrigation remotely using the TrolMaster TM+ smartphone app or web interface. This system supports calendar-based scheduling, feed-on-demand, auto-filling, and even volume-based irrigation when used with the DFM-1 flow meter (sold separately).

With integrated support for up to 50 moisture, temperature, EC, pH, or flow sensors, the NFS-2 gives you detailed, real-time data on substrate and nutrient conditions across multiple grow zones. Receive mobile notifications when any sensor detects an out-of-range condition, giving you peace of mind and ensuring crop health 24/7.

Key Features:

• 10” Touchscreen Interface – User-friendly, large-format control panel
• Mobile App & Web Access – Monitor and control irrigation from anywhere with TM+
• Massive Device Capacity – Supports up to 300 pumps and 300 solenoids
• Sensor Integration:
  • Monitor pH, EC, and water temperature (with AMP-3)
  • Track substrate EC, temp, and moisture (with WCS-1 & WCS-2)
  • Measure water consumption (with DFM-1)
• Flexible Control Options:
  • Feed on demand
  • Feed by volume
  • Auto reservoir fill
  • Calendar scheduling with daily or multi-day presets
• Failsafe Functionality – Alerts for irregular sensor data or system errors
• Modular System Design – Easily scalable to match your operation’s growth

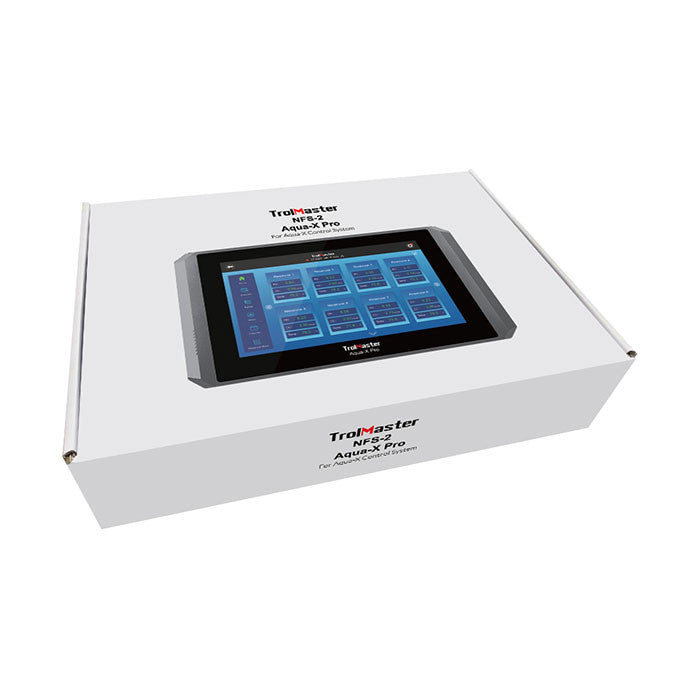

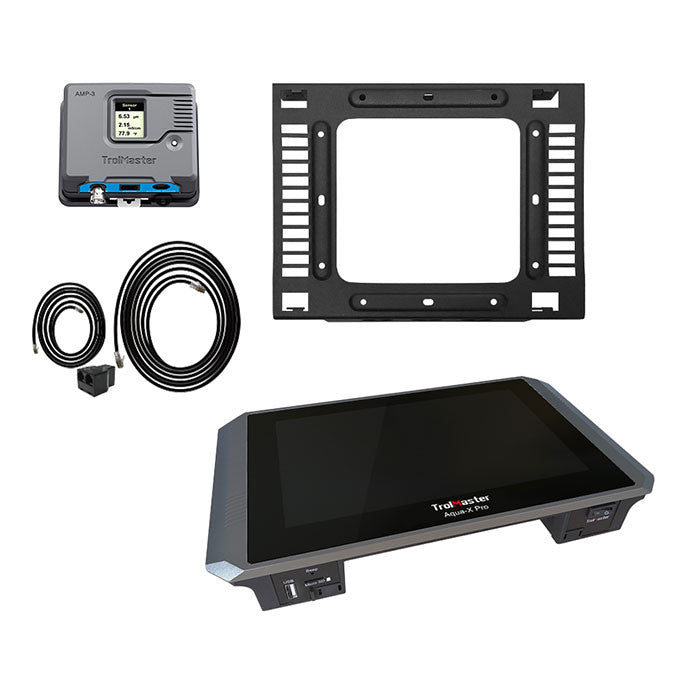

Package Includes:

• 1 x Aqua-X Pro (NFS-2) Controller
• 1 x AMP-3 Nutrient Sensor Set
• 2 x 12 ft RJ12 Cables

Technical Specifications:

• Input Voltage: 100–240V
• Max Device Connection Distance: 1000 meters
• Max Sensors Supported:
  • Nutrient Sensors (AMP-3, DFM-1, WD-1): Up to 50
  • Medium Sensors (WCS-1, WCS-2): Up to 50
• Max Pumps/Valves Supported: Up to 50 of each type
• Working Temperature: 32–122°F
• Humidity Tolerance: ≤ 90%
• Certifications: CE, FCC, ETL
• Voltage: 120V
• Ingress Protection Rating: IP20

The TrolMaster NFS-2 Aqua-X Pro is the ultimate solution for precision irrigation management. Whether you’re running hydroponics, coco, or soil-based systems, this controller gives you the power, flexibility, and real-time insights to optimize your grow from seed to harvest.

Scale smarter. Water wiser. Grow with precision—powered by TrolMaster.
