TrolMaster SCC-1 25" Standard Controller Cabinet for Hydro-X Pro / Aqua-X Pro
The TrolMaster SCC-1 Controller Cabinet is a professional-grade enclosure designed to streamline your environmental control system. Built specifically for Hydro-X Pro and Aqua-X Pro setups, this 25" modular cabinet keeps all your TrolMaster controllers, power supplies, and device modules securely housed, clean, and dry.
Featuring multiple RJ12 splitter boards and integrated power outlets, the SCC-1 offers exceptional organization and easy installation. Its waterproof, industrial-rated design ensures durability and long-term reliability in demanding grow room environments. With bi-directional RJ12 cable support and a detachable layout, customizing your setup has never been easier.
Features & Benefits:
- Waterproof, industrial-rated enclosure (IP56 / NEMA 4X equivalent)
- Cleanly houses all controller and module components
- Detachable design for easy upgrades and service
- Bi-directional RJ12 cable compatibility for efficient wiring
- Integrated power and splitter boards for plug-and-play installation

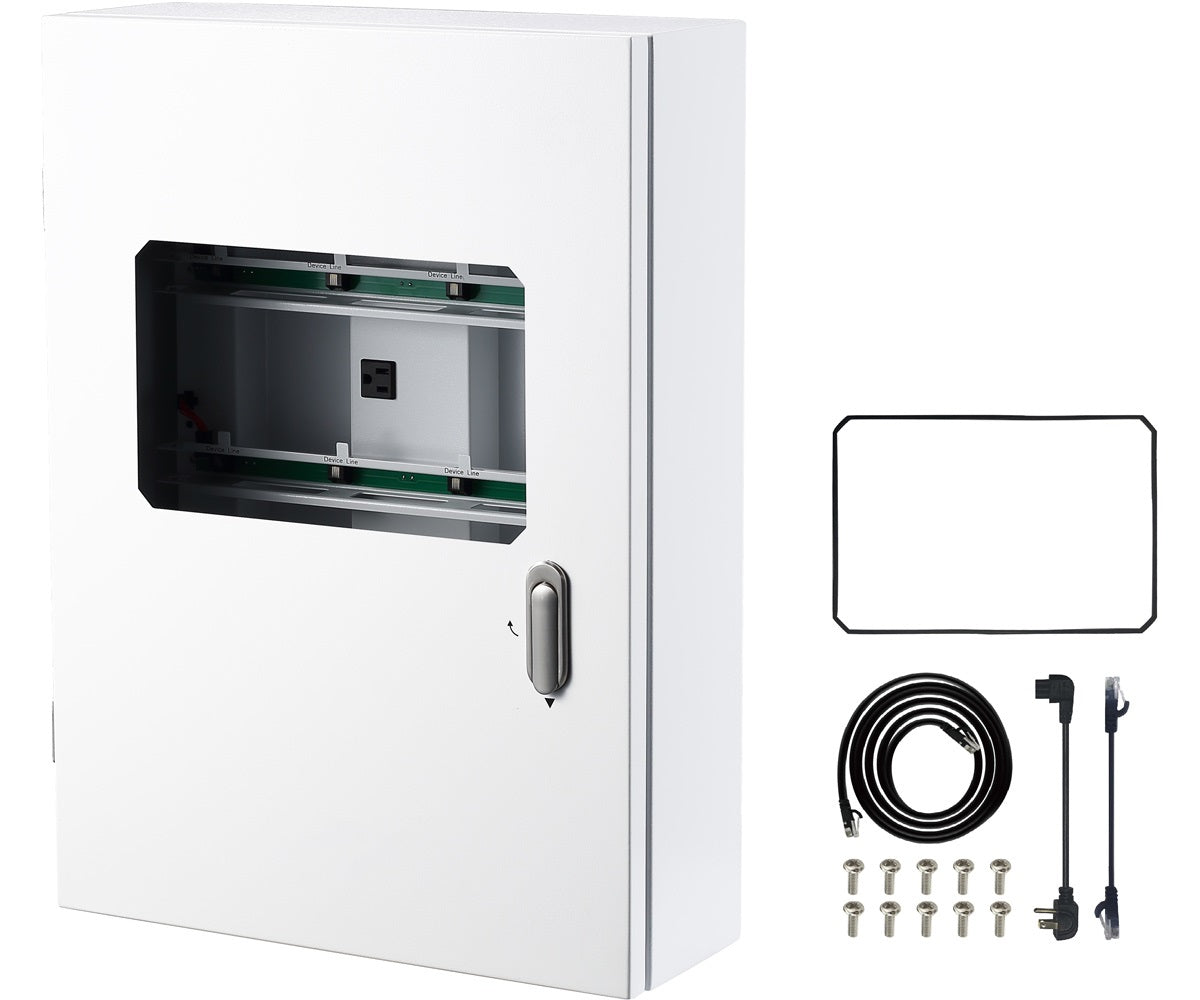

Includes:
- (1) Controller Cabinet
- (1) Installation Manual
- (4) Long RJ-12 Cables
- (16) Short RJ-12 Cables
- (4) Power Cables for OA6-24/OA6-110
- (10) OA6-24/OA6-110 Screw Set

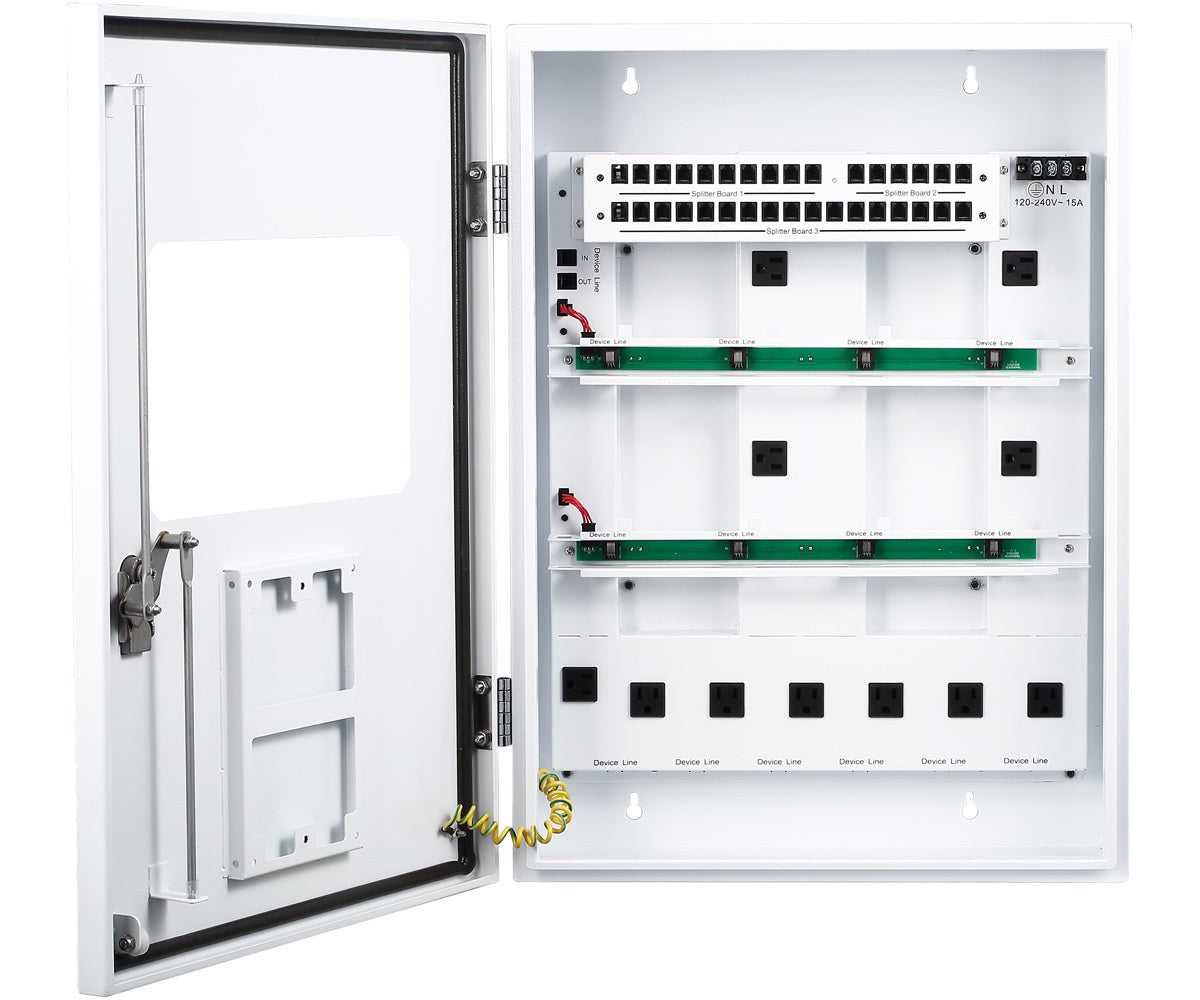

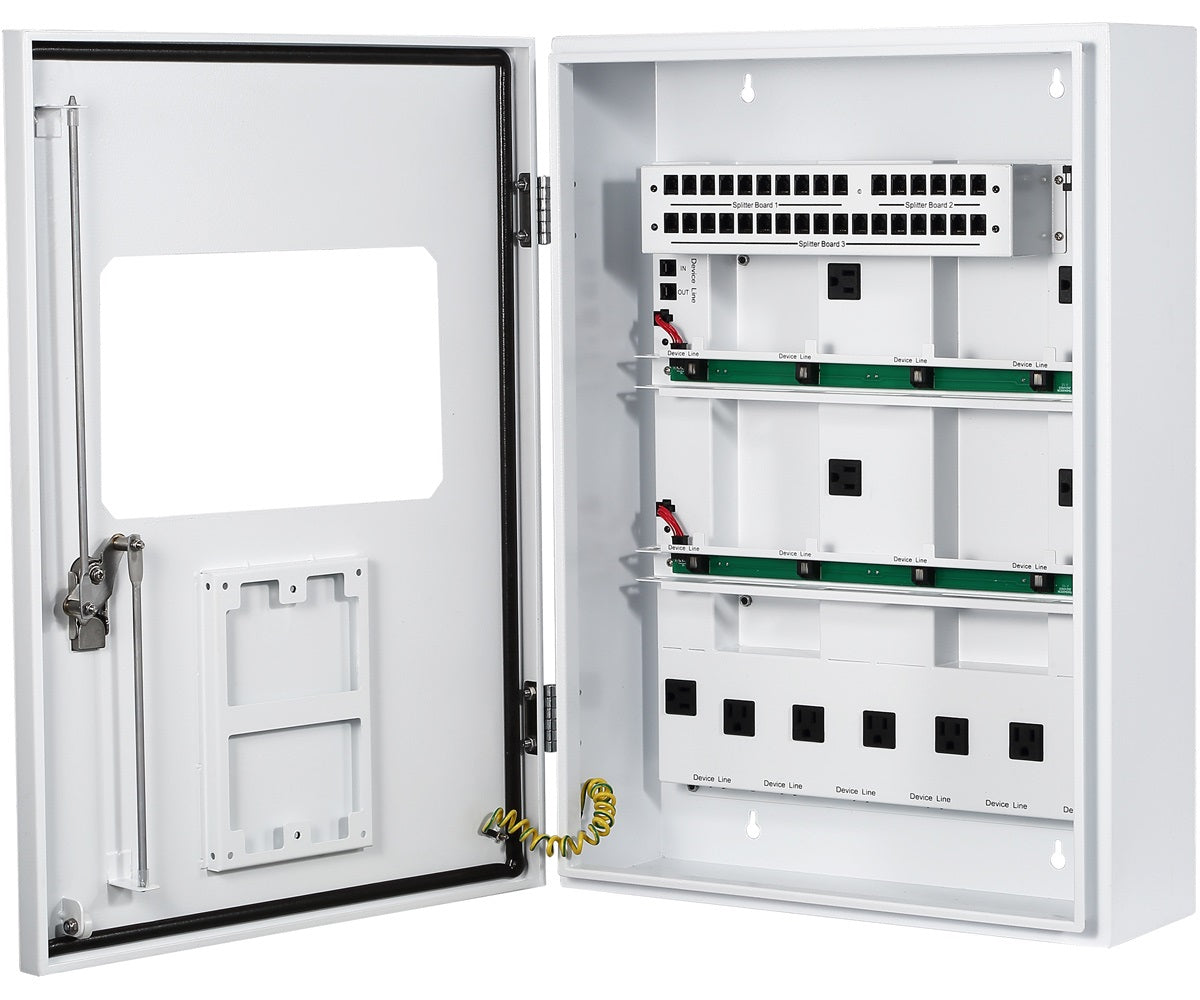

Cabinet Capacity:
- Splitter Boards: 5 total (with 10 to 17 ports per board)
- Power Outlets: 4 main + 1 center + 6 bottom
Specifications:
- Dimensions: 25" (L) x 18" (W) x 6.26" (H)
- Voltage: 120V
- Max Amperage: 15A
- Temperature Resistance: 32°–104°F
- FCC & ETL Registered
- Shipping Weight: 36.8 lbs
Optimize your grow room wiring and safety with the TrolMaster SCC-1 – the ultimate cabinet for efficient control system management.
