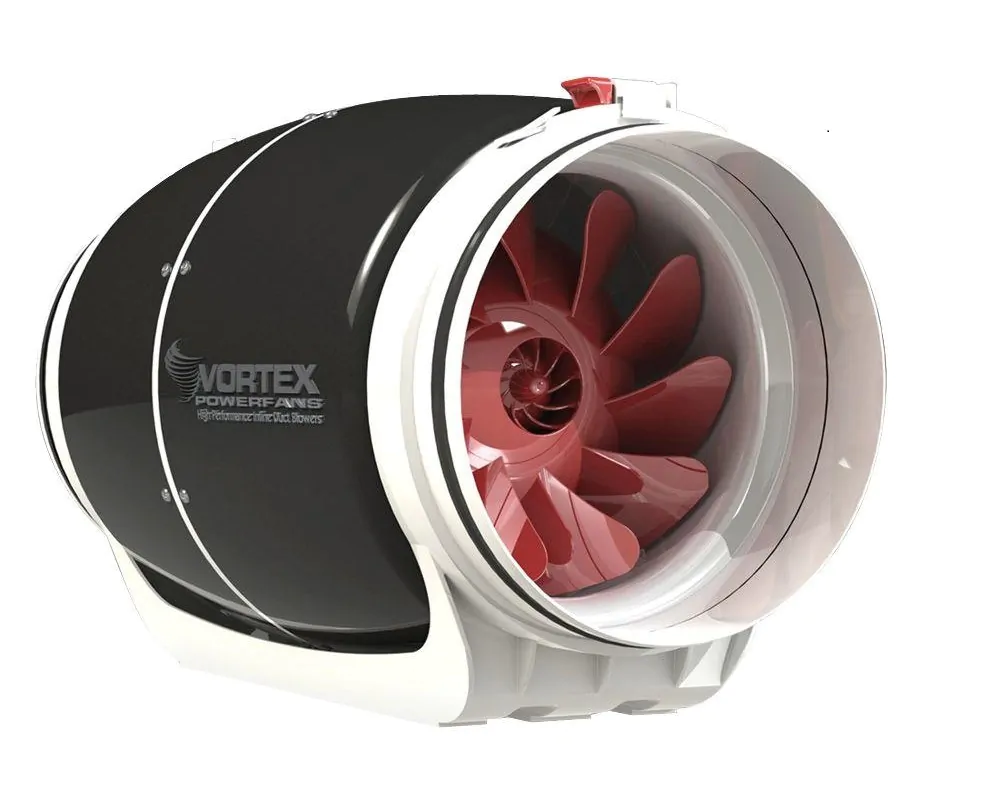

Vortex S-Line 8" Powerfan Inline Fan 728 CFM

Vortex S-Line Powerfan 8 inch, 728 CFM

The S-line is a revolutionary series of fans that combine energy efficiency, ultra-quiet operations and a collection of advanced technologies that deliver unparalleled performances. An extremely energy efficient AC brushless motor powers the patented mixed-flow dual impellers. Built with double insulated walls, noise is reduced to levels that were previously thought to be unattainable.

All S-Line models are assembled with high impact resistant polycarbonate casings, an integrated back draft damper and a mounting bracket designed for quick and easy installation.

S-Line Brochure

Features:

• Double insulated wall to prevent condensation and reduce noise levels
• Rubber gasket to ensure airtight and vibration-free duct connection
• Integrated Backdraft Damper to prevent air leakage when the extractor is not operating
• Fan gasket to ensure tight and vibration-free assembly
• Mounting bracket designed for quick and easy installation
• High impact resistant polycarbonate casing for heavy duty applications
• The motor is 100% speed controllable, highly efficient, has low power consumption, and is built with permanently lubricated ball bearings and thermal overload protection
• Internal impeller for cooler motor operation
• Mix flow impeller design for quiet operation and high air flow
• Easy clipping system to allow fan removal for maintenance
• Ready to plug in 120v 60Hz out of the box
• 70 watt @ 120v. Only 4.9 CFM per watt
• 347 CFM (cubic feet per minutes)
• AMCA Air Listed
• 10 Year Warranty

Vortex Powerfans VTX Series and S-Line are now AMCA certified for performance and sound! AMCA (Air Movement and Control Association) certified ratings program is a globally recognized third-party program that gives buyers, specifiers and users assurance that manufacturers' published data for air movement and control products are accurate.
